There are many types of reducers with different models, and each type has different uses. So what is its classification like? The following are commonly used classifications of reducers:
1. Cycloid pinwheel reducer, also known as cycloidal pinwheel reducer, is a novel transmission machinery that adopts the K-H-V low tooth difference transmission principle and cycloidal pinwheel meshing. It is used as a driving and deceleration device in the fields of light industry, food, metallurgy, mining, lifting and transportation, as well as engineering machinery. It has some characteristics such as a large reduction ratio, long service life, stable and reliable operation, easy disassembly and assembly, and strong overload capacity.

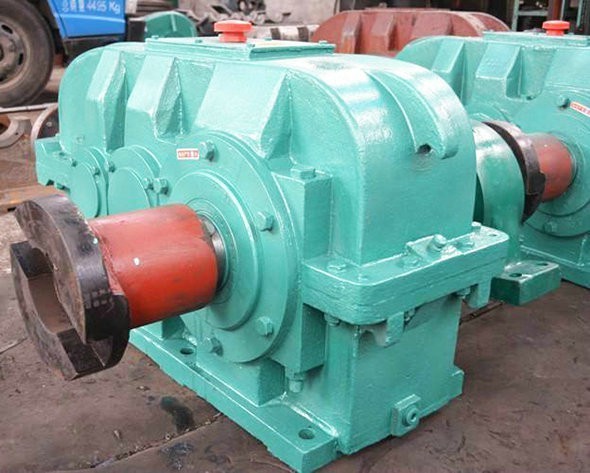

2. Hard tooth surface cylindrical gear reducer adopts hard tooth surface cylindrical gear and spiral bevel gear transmission. It adopts two integral module structure types, which are easy to install and remove. The hollow shaft suspension installation method and the anti torque fulcrum realize the reduction transmission. It has a large transmission ratio and can also be combined in multiple stages as needed; The transmission efficiency is relatively high because the meshing part adopts rolling meshing, and the general transmission efficiency is 90% to 95%; There are relatively few faults and the usage time is long. The main transmission meshing parts are made of bearing steel grinding, so the mechanical and wear resistance are both good. Also, because it is a rolling friction, there are relatively few faults and the usage time is long; The operation is relatively stable and reliable, as the majority of the transmission process involves tooth meshing, resulting in smooth and reliable operation without much noise; Installation and disassembly are also relatively convenient, and maintenance is also easy; It has the characteristics of frequent starting and forward and reverse rotation.
3. The advantage of planetary gear reducer is its compact structure, good return clearance, high precision, long service life, and high rated output torque, but the price is relatively high.
4. The main feature of worm gear reducer is the reverse self-locking function, which has a relatively large reduction ratio. The input shaft and output shaft are not on the same axis or plane.
5. The helical gear reducer uses helical gear transmission internally, which has the characteristics of low noise as low as 50 decibels, high transmission efficiency of up to 95%, and a long service life of up to 20000 hours without maintenance. The products sold in the market are mostly Taiwanese brands or those produced with technology introduced from Taiwan.
That's all for today's content. A reducer is a combination of a regular motor and a gearbox. It is a relatively good mechanical device that can be used to reduce speed and increase torque.
